TheStaticTurtleCreating a DIY open-source and budget-friendly bidirectional 3G-SDI to fiber converter using readily available components and determination.
This is a stupidly long article, it details the different phases thoroughly, you'll need probably some time to really read it
Every once in a while, I have the pleasure of working with my local choir. Every few years, they perform on stage, featuring around 3 hours of music ๐ถ. In the past, my involvement was mostly behind the scenes๐ป, helping wherever I could. However, last year, I decided to take on a more ambitious role and conduct an experiment that would elevate the entire performance.
I took every piece of video equipment I could get my hands on and set out to record the shows and provide live Image Magnification (IMAG) of the band ๐ฅ. This would be a significant step up from previous years, where recording had been outsourced with mixed results. The idea was to bring a new level of engagement for both the audience and the performers, while also creating a high-quality record of the event ๐.
The rest of the tech staff later admitted that they were, at first, skeptical of this ๐คจ. But it turned out to be a resounding success. The live IMAG was enthusiastically received by both the singers and the audience, adding a dynamic visual element that enhanced the overall experience ๐ฅณ. It allowed those seated further back to see the work of the musicians ๐ฅ. As for the recording, the quality far exceeded my expectations, surpassing in many ways what had been achieved in previous years ๐คฉ.
The last show was wonderful, but I always want to improve things. Something that's been bugging me in my video setup is that it was a mess. I mean, I had HDMI cables here, SDI there, some RTSP streams, and even NDI feeds. Talk about a tech salad ๐ฅ!
Don't get me wrong, it workedโฆ mostly, and that's what happens when your budget is almost none. But I had to run custom scripts before the show ๐ and more than once the IMAG showed the blank Elgato logo or a freeze-frame โฌ. So, I kept thinking, "There's got to be a better way to do this."
As I mentioned, the issue had always been the budget ๐ฐ, I was at the time an apprentice in a different field with no contacts or knowledge in the AV production world. Video isn't exactly the cheapest part of a live production. The technology evolves rapidly, which means the quality is always increasing.
So for the next show, I want to do one thing: simplify the heck out of my video system, specifically transport ๐.
I started digging into different options and, there are a few contenders:
But wait, it gets better! SDI got a neat trick up its sleeve - you can easily convert it to fiber โช. Like effortlessly convert it!
My idea is the following: an MPO-12 breakout (fancy connector with 12 fibers) and an armored MPO-12 cable. Throw them in a DIY stage box, and boom! We're in business: one cable, multiple cameras. This setup would be like the Swiss Army knife ๐ช of video transport. I'm thinking of something like 2 fibers for 10 Gb Ethernet ๐, at least 8 for video feeds ๐น, and 2 spares that I'll probably use for audio in the future.
However, the cost of fiber converters can be a hurdle, almost as much as IP converters (NDI/RTSP). For example, Blackmagic offers a 12G SDI to fiber converter priced at around 155 EUR ๐ธ:
While this is a reliable and professional option, the price tag is a bit hefty for a project that's meant to be low-cost and accessible. I don't really need 8k video, 1080p60 is more than fine for IMAG, so 3G-SDI will do.
Unfortunately, I couldn't find a cheaper alternative, even for lower data rates. I was on the lookout for more budget-friendly alternatives, and purely by chance, I stumbled upon this post on X by twi_kingyo.

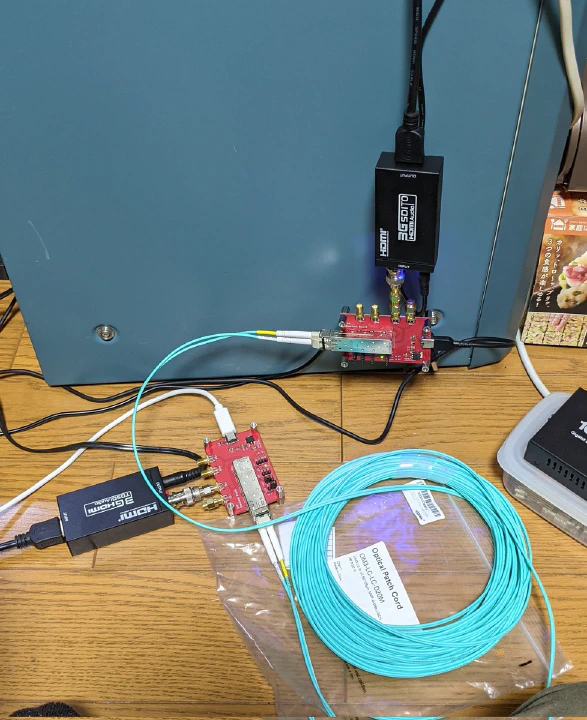

The post was a game-changer for me. From the picture, it certainly looks like SDI-HDMI converters plugged into a test board with a fiber cable in the middle. Very crude, DIY approach to 3G-SDI to fiber conversion, but that looked both affordable and in line with what I had been envisioning.
As I read a bit more, I immediately thought that this is precisely what I want to do
I started this journey by researching a ton on the two major components of this project, namely SDI and SFPs.

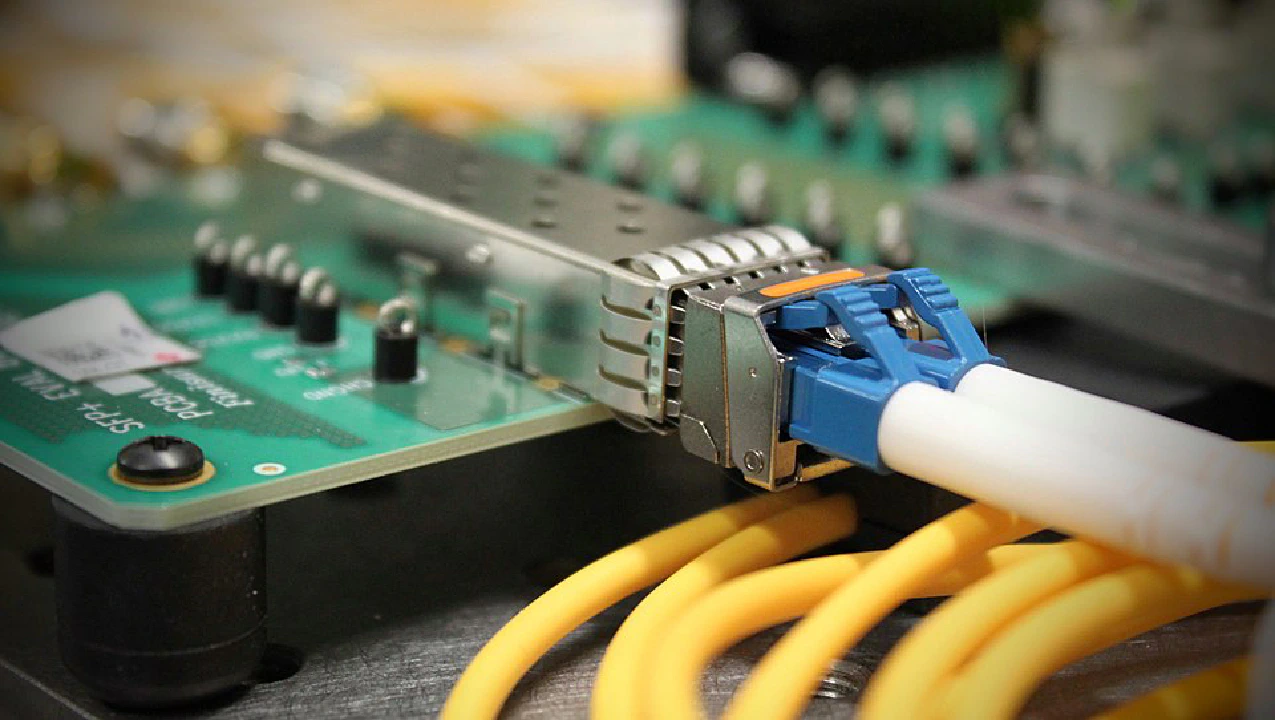

SFP (Small Form-factor Pluggable) and SFP+ (enhanced SFP) modules are compact, hot-swappable transceivers used in networking to transmit and receive data over optical or copper connections. They are widely used in switches, routers, and other networking equipment.
Their key features include
See this Wikipedia page about them for more information:
SFP modules take very few signals:
| Description | Pin | Pin No | Pin No | Pin | Description |
|---|---|---|---|---|---|
| Transmitter ground | VeeT | 20 | 1 | VeeT | Transmitter ground |
| Transmit differential pair (Neg) | TD- | 19 | 2 | TxFault | Transmitter fault indication |
| Transmit differential pair (Pos) | TD+ | 18 | 3 | TxDisable | Optical output disabled when high |
| Transmitter ground | VeeT | 17 | 4 | MOD-DEF(0) | 2-wire serial interface data line |
| Transmitter power (3.3 V, max. 300 mA) | VccT | 16 | 5 | MOD-DEF(1) | 2-wire serial interface clock |
| Receiver power (3.3 V, max. 300 mA) | VccR | 15 | 6 | MOD-DEF(2) | Module absent, GND indicates module presence |
| Receiver ground | VeeR | 14 | 7 | RS0 | Rate select 0 |
| Receive differential pair (Pos) | RD+ | 13 | 8 | LOS | Receiver loss of signal indication |
| Receive differential pair (Neg) | RD- | 12 | 9 | RS1 | Rate select 1 |
| Receiver ground | VeeR | 11 | 10 | VeeR | RX Ground |
Most of them don't need to be dynamically adjusted, and some can be ignored outright. As long as the module gets power, has the correct rate and has its transmitter is enabled, it should work fine.
What's even better is that basic modules (short distance, multimode ones) are relatively "passive". Some include a reclocker that resyncs the data, but not always.

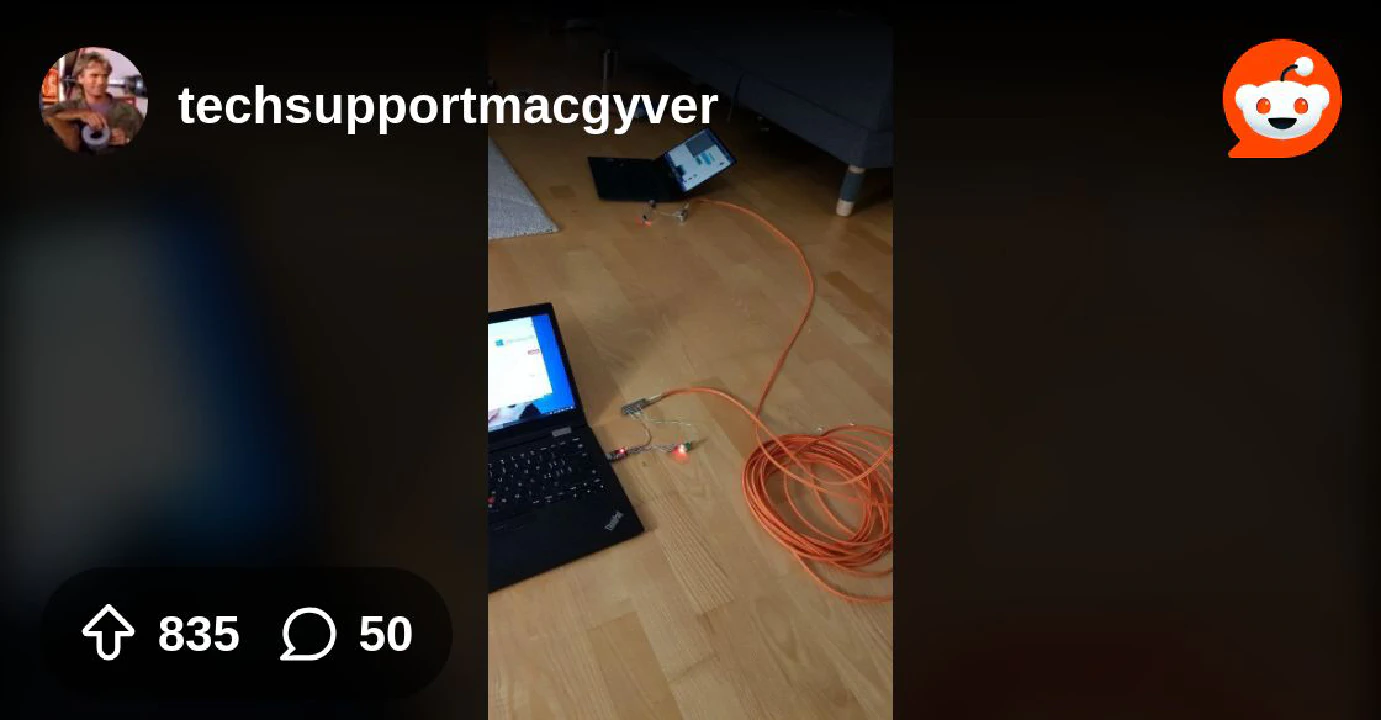

This means that, as long as it's a differential signal, you can feed just about anything to the module

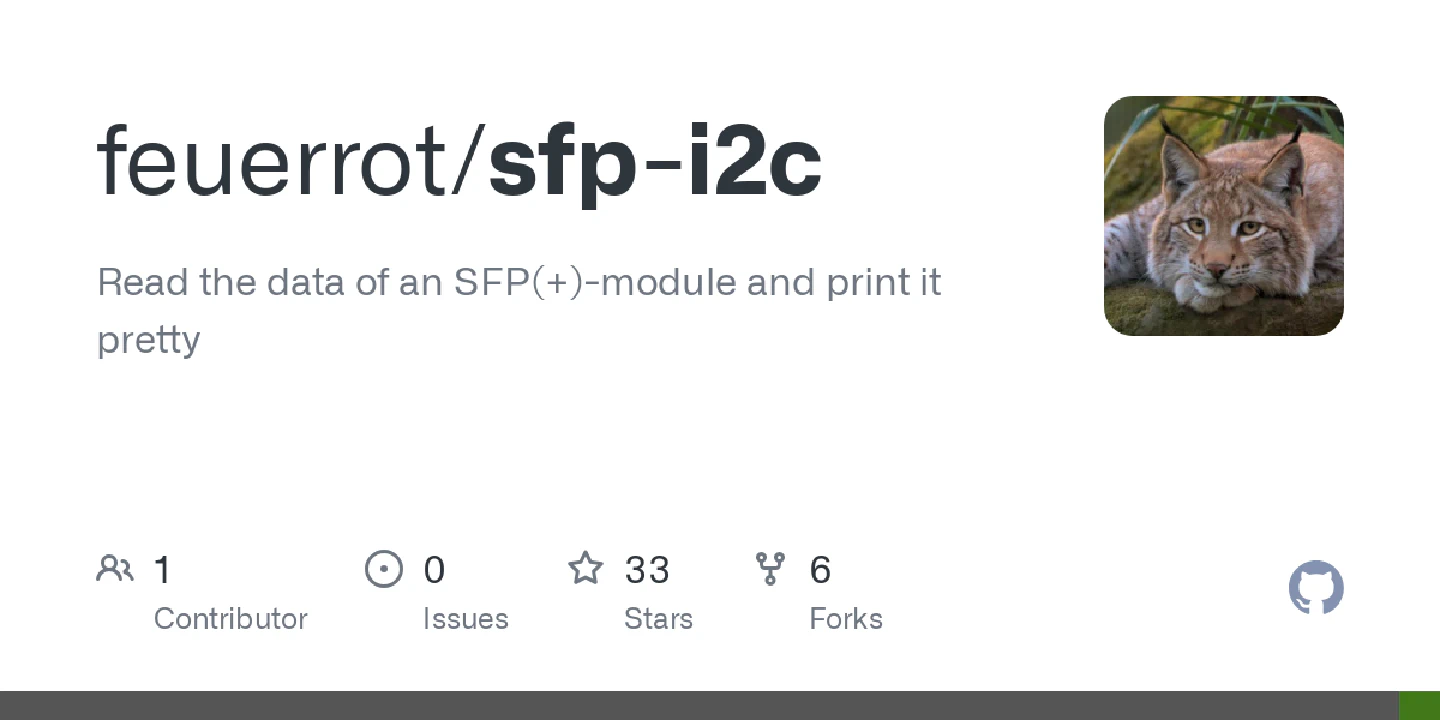

And, as long as they support it, they can be relatively easily managed using the DDM (Digital Diagnostics Monitoring) protocol
What's even better is that they are cheap. The SFP+ transceivers that I have are the DELL FTLX8571D3BCL-FC. I got them for around 8 EUR, but you can get them cheaper: here is an eBay listing for ten modules for 70 EUR.
There are special ones for video that can handle weirder and faster signals with better signal integrity (12G-SDI for example) but from my testing, 3G SDI works just fine on these modules.
SDI (Serial Digital Interface) is a family of digital video interfaces first standardized by SMPTE. It's a widely used family of standards for transmitting uncompressed digital video signals over coaxial or fiber optic cables. It's primarily utilized in professional broadcasting and video production. SDI enables high-quality video transmission with low latency, making it ideal for live broadcasts and studio environments.
It supports a ton of formats ๐ผ๐๐พ described in the following table:
| Standard | Name | Bitrates (Mbit/s) | Example video formats |
|---|---|---|---|
| SMPTE 259M | SD-SDI | 270, 360, 143, 177 | 480i, 576i |
| SMPTE 344M | ED-SDI | 540 | 480p, 576p |
| SMPTE 292M | HD-SDI | 1485 and 1485/1.001 | 720p, 1080i |
| SMPTE 372M | Dual Link HD-SDI | 2970 and 2970/1.001 | 1080p60 |
| SMPTE 424M | 3G-SDI | 2970 and 2970/1.001 | 1080p60 |
| SMPTE ST 2081 | 6G-SDI | 6000 | 1080p120, 2160p30 |
| SMPTE ST 2082 | 12G-SDI | 12000 | 2160p60 |
| SMPTE ST 2083 | 24G-SDI | 24000 | 2160p120, 4320p30 |
SDI uses uncompressed digital video and audio formats. The data is typically encoded in a YCbCr color space, with 10-bit or higher color depth, ensuring a high dynamic range and color fidelity. Alongside video, an SDI signal may contain up to 16, 48 kHz, 24-bit audio channels.
Data is encoded in NRZI format, and a linear feedback shift register is used to scramble the data to reduce the likelihood that long strings of zeroes or ones will be present on the interface. Thanks to NRZI encoding, the interface is self-synchronizing and self-clocking โฑ. SDI uses a form of forward error correction to maintain signal integrity, which is especially important for long-distance transmissions ๐ญ
On the physical layer side, SDI transmits signals using coaxial cables with BNC connectors, designed for minimal signal loss and interference. And as mentioned, it can also use fiber optic cables for longer distances and increased bandwidth.
See the Wikipedia page for more details:
SDI is way more complicated to handle and most often requires an FPGA with specialized components, see this DIY pattern generator for example:
Thankfully, for this project, I don't actually need to decode/encode anything myself. Just to convert signals, which is generally cheap.
After this extensive research, It would seem that all that I really need is a cable equalizer for RX and a cable driver for TX to convert the 75-ohm single-ended and 100-ohm differential pairs ๐คทโโ๏ธ.
When I saw @twi_kingyo post, I quickly found the LMH0397, which looked prefect at first glance. The description said 3G SDI bidirectional I/O with integrated reclocker.
I got very excited ๐คช and quickly (too quickly) designed a PCB and sent it to production ๐ญ.
I usually spend at least a week ๐ on a prototype. However, I treated this more as a breakout board than a proper prototype, which means I skimmed ๐โโ๏ธ through plenty of things.
And it worked, well, partially worked.
In my haste, I didn't fully read the datasheet ๐. While it is bidirectional in the sense that I can do both directions. It cannot, however, do it at the same time.
Something that I would have seen if I read the f-ing ๐คฌ datasheet:
The LMH0397 is a 3G-SDI 75-โฆ bidirectional I/O with integrated reclocker. This device can be configured either in input mode as an adaptive cable equalizer or in output mode as a dual cable driver, allowing system designers the flexibility to use a single BNC either as an input or output port to simplify HD-SDI video hardware designs.
If I had read things more carefully, I would have done things differently, but it worked and that meant I had a proof of concept.
The second prototype was very cost minded ๐ฐ. My target was around 25eur per converter
The LMH0397 is a great chip, but it is 18.5 EUR per unit ๐ธ in low volumes and has redundant features not needed for a simple media converter.
I spent a while searching for an alternative. First thing I did is to take the reclocker out of the equation ๐งฎ which, while useful, isn't needed in most cases, especially at lower data rates. Now, I needed a simple cable equalizer and a cable driver. There are a few options, for instance Texas Instrument or Semtech have some interesting chips.
But the ones I choose are from Microchip, the EQCO30T5 and EQCO30R5.
While these chips are marketed as HD-SDI Transmitter/Receiver, they are capable of 3G-SDI Video. Interestingly ๐ค, they also seem to be able to be used for a data back-channel and power over coax, but this won't be of any use for me.
The schematic (at least the interesting parts) is based on the typical application circuit of both schematics. Compared to the LMH0397, the EQCO30T5 and EQCO30R5 are super simple to connect.
This is the first prototype with the appropriate dimensions, my plan was to fit everything into a 1U case (fiber splitter, converter modules, โฆ). This means it has to be at most 45 mm tall, but I decided that my target would be 35 mm ๐. This would leave enough space for the chassis, mounting & cables.
Once I received the PCBs, I immediately soldered four chips on two separate boards. Powered them up and amazingly there wasn't any magic smoke ๐!
I then screwed in SMA to BNC adapters and connected my HDMI-SDI & SDI-HDMI ๐ฅ๏ธ converters. Same as before, to avoid destroying an SFP+ module, I took a 1m DAC cable and connected the two boards.
And it worked! I got a picture on my monitor!
But I was far from done ๐.
Using a 1m DAC is fine and all, but the goal is at least a 50m distance. To start things out, I used a 15m cable and as the video showed, it still worked. Somewhat
I used Jellyfin to play videos on the output and mysteriously, while I had the window in the foreground everything was fine, no issues at all! But, as soon as I clicked elsewhere, the link crashed and would not come back up.
While the "Sync" LED indicated that it was trying to sync, using my 50m fiber cable didn't show any picture in any condition!
After some investigation, I realized that the only thing that changed in the source picture was the color of the title bar of the window:
After grabbing the pixel color (which was RGB 43, 43, 43), I did a quick test with paint to try to reproduce the issue. And as you can see, it appears that this color is indeed part of the problem:
My best guess is that this color somehow translates to the gray (RGB 68, 68, 68 YCbCr 68, 128, 128) part of the SDI pathological test pattern.
The SDI pathological test pattern is specifically designed to stress test the SDI equalizer and PLL performance. The test pattern consists of a static test image with the top half of the lines filled with a shade of magenta, and the bottom half of the lines filled with a shade of gray.
From what I understand, these colors basically produce long strings of zeros and ones ๐จโ๐ป in the data stream. This type of pattern is particularly challenging for SDI equalizers and PLLs to process and keep synced correctly.
At this point, I was sure that the issue was caused by a bad design on my part ๐คฆโโ๏ธ and feared that maybe the EQCO30T5/EQCO30R5 were pushed too far with 3G SDI. However, I couldn't shake off the feeling that there might be something else at play here ๐ค.
So instead of re-thinking my test setup, I went ahead and started working on the third prototype.
Alright, so, let's dive into the third prototype 3๏ธโฃ.
The second prototype had many issues, the biggest one is, as demonstrated, the SDI pathological test patterns. This was the main thing I wanted to tackle with this iteration, and I was hopeful that it would be the last one.
First off, I swapped out the EQCO30R5 SDI equalizer for the LMH0344.
While both chips are designed for SD-SDI & HD-SDI with the capability to go up to 3G-SDI, the EQCO30xx chips seem not to be designed for this application but more to be used in the other direction.
On the other hand, the datasheet of the LMH0344 talks way more about 3G-SDI. Alongside that, it also has a Mute pin and Cable/Carrier detect signaling pin.
It also mentions that the footprint is compatible with the LMH0044, LMH0384 and LMH0074; It also states that it replaces both the GS2974A and GS2974B chips from Semtech.
This gives me a lot of flexibility in case I want to change chips in the future ๐ .
But, as it turns out, the footprints of the EQCO30R5 and LMH0344 are extremely similar (at least the important parts), a few pins are marked DNC on the EQCO30R5 and a capacitor is needed by the LMH0344 where there isn't one for the EQCO30R5.
Both of these issues can be solved by adding 0-ohm resistors that may or may not be placed during assembly.
In my head, this switch was good because the new component offered better performance and more flexibility ๐คธโโ๏ธ.
During my tests, I noticed that the AMS1117 LDO regulator that I was using to provide 3.3v to the SFP+ module and other ICs was getting rather hot ๐ฅ.
A quick search online + digging around in datasheets revealed the issue:
EQCO30T5 typically consumes 45mAEQCO30R5 typically consumes 55mAWhich gives a total of 600mA โก.
A quick calculation for the max power dissipation of the AMS1117 shows that current consumption is borderline over the limit, which explains why I had a furnace on my board ๐.
While I choose an LDO to reduce the risk of electrical noise producing more issues, this won't do. The end goal is to stack several of these boards together, which means that heat might cause issues.
Instead, I complicated things a bit more ๐ and went with the TPS5430, a 3A step-down buck converter which integrates the MOSFET. The buck converter will provide a more efficient voltage regulation and can handle higher current demands without getting hot. The only reason I chose this model is that it's part of the "Basic" parts selection of JLCPCB which means I don't have to pay extra later.
But I recently used the AP62200 for another project and I quite like this chip, mainly due to its size and the fact that it can accept 5V (something the TPS5430 doesn't ๐ฅ).
The previous prototypes all had different size, different mounting hole locations, etcโฆ
I wanted to change that, so I decided on a fixed layout โ for every "external" component:
This resulted in something like this:
I then decided that if I were to do another prototype, these components would not change location.
As you can see, I also added configuration pads for the SFP+ module and experimentally added a link between the LOS signal of the SFP to the output enable of the cable driver, I also added a link between the cable detect of the equalizer and the TXDIS of the SFP
I wish I had a video to show you but as I'll explain later, I don't have any V3 boards that are fully populated anymore
Even with all the improvements / changes I made in the third prototype, the performance issues were still a nagging problem. Using a 15m fiber cable worked, but extending that to even longer distances like 50 meters didn't work whatsoever. When I hooked up my setup to test it over this distance, there wasn't any picture at all on the receiving end.
While doing some tests, I realized that the very first prototype used the LMH0397 which, while unidirectional, did include a reclocker โฑ.
After getting this board up and running again, I managed to get some partial success. The artifacts were completely gone with the 15m fiber ๐ and the 50m one now showed a picture but still had artifacts present in some cases ๐.
I was thinking that maybe if I had them on each side, it would work better, but that would raise the price so much. Instead, I decided that I would investigate a bit more before committing to this solution.
After spending countless hours tweaking my design and trying different configurations, I was about ready to pull my hair out. It seemed like, regardless of what changes I made, those pesky signal integrity issues persisted.
Then one day, while discussing this with some friends, we discussed the fact that it would be a good idea to have "proper" equipment to validate my design. Up to now, I used cheap-ish converters I bought off AliExpress, so I decided to buy the Micro Converter Bidirectional SDI/HDMI 3G from Blackmagic.
After waiting a few days for the parcel to arrive, I proceeded to test it. To my surprise, everything worked, flawlessly, even with the 50m cable ๐.
I then tried using the cheap HDMI to SDI converter with the Blackmagic one acting as the receiver, and I could see that the lock indicator flickered. The other way around worked but showed the same symptoms as before.
In the end, most of these issues were caused by these cheap converters. Once I switched them out for higher-quality ones, everything clicked into place. The long-distance performance improved drastically, and the intermittent issues vanished.
This is when I realized two things:
For fun, I also tried to chain every piece of fiber and coax I had โ๏ธ. This came to a total of 95m of fiber and 30m of coax, if this test was completed successfully, it would mean that the signal would have traveled 220m ๐ค, and to my surprise, IT WORKED ๐ฎ๐ฅณ
I also decided that I wasn't happy with the current version, mainly due to the LEDs and the fact that these prototypes were still using a 2-layer board, which is a hell of a sin with high-speed signaling.
Nothing significant changed in these versions.
The only things that changed are:
One thing that I also wanted to change was the connector. The ones I was using were 50-ohm SMA connectors, which are both the wrong impedance and connector for SDI.

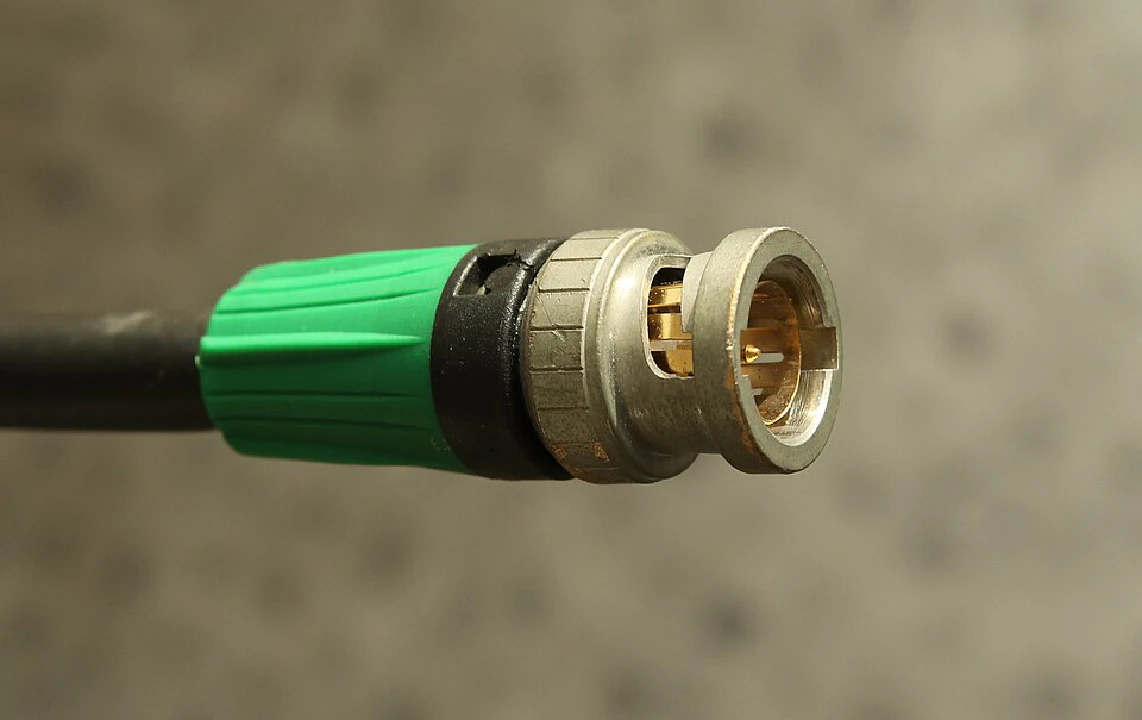

As mentioned before, SDI uses 75-ohm cabling & connectors, the most common of which are BNCs. That said, other connectors exist such as HD-BNC or DIN 1.0/2.3
Initially, I wanted to use proper BNC connectors, but after browsing Digikey I quickly found that they are SHOCKINGLY expensive ๐ฎ. Proper edge connectors from the likes of Amphenol RF or others costs a minimum of 5 EUR per connector.
This is unacceptable for such a low-cost device.
Instead, I simply used the footprint of the 034-1030-12G from Amphenol which is a 12G 75-ohm right angle HD-BNC connector. This means that these boards are technically compatible with a connector, but there's no way in hell I'm going to use it.
Instead, I'm buying SDI male-male panel mount patch cables, cutting them in half โ๏ธ and soldering them directly to the PCB.
According to the responses, I got from my question on electronics.stackexchange.com:
It should be perfectly fine to solder them directly.
One thing I did differently is that I made two versions of this prototype, one being the "Normal" version using the EQCO30T5 and the "Reclocked" version using the LMH0397
This was done for three reasons:
Here is a photo of it soldered to a BNC pigtail:
Here is a photo of it soldered, unfortunately the rest of the pigtails and SFP cages hadn't arrived yet:
Fortunately, making 4 prototypes means that I actually had almost enought chips to fully assemble everything, so I went to work. After a few hours, I was done with what I had.
When I designed the PCBs, I originally wanted to use standoffs to carry current. But when assembly time came, I realized that that would be a nightmare to disassemble ๐ซ. So, to solve this, I decided to create a custom 3D-printed mount that could house eight of these converters (with only 6 slots populated, two reclocked bidirectional and four unidirectional normal ones).
This setup ensured that all components were neatly organized and securely mounted. The 3D-printed base also includes integrated power distribution ๐ with JST connectors, making it easy to plug in & out each converter for troubleshooting without any messy wiring.
Unfortunately, I haven't got a 1U rackmount case to show yet ๐ฅ because I'm not fully committed to the SDI-only stage box design that these converters will live in, but I'll either make a new post or update this one once done โ.
As for the price, without including the time it took to design and assemble them, I would say that I reached my price target by a small enough margin ๐ค. But what I do realize is that if I had to pay someone to design this, it wouldn't be economical, at all ๐ธ. And suddenly the 155 EUR price of the Blackmagic converter (which can do 12G-SDI) seems much more reasonable, I would even say cheap!
That being said, what a journey! From the partial success of the initial prototype to the very frustrating issues with long-distance signal integrity ๐คฌ, I learned some valuable lessons along the way ๐.
Looking back, the most important takeaways are:

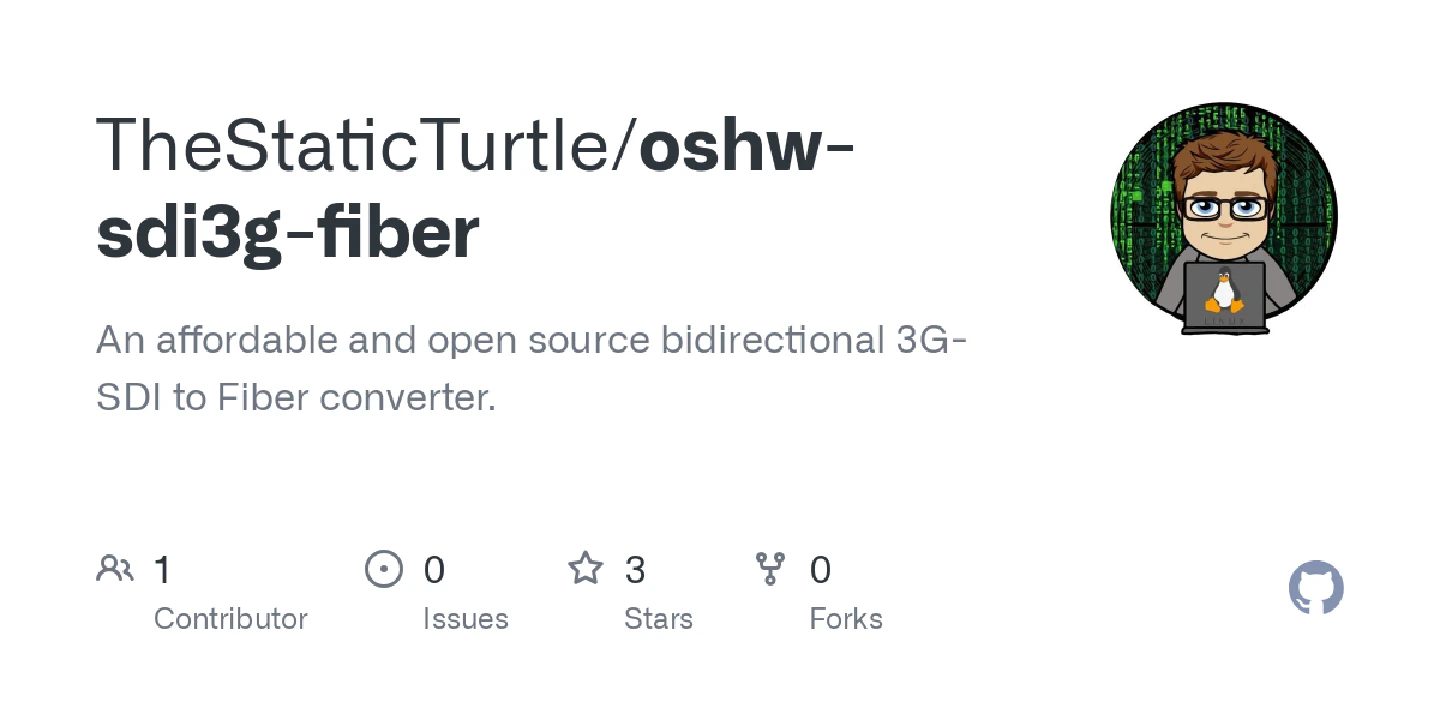

Here is the repo holding the schematic & PCB for each version:
While this project has come a long way from that first proof of concept, there's always room for improvement ๐. The pro-AV space is exciting and constantly evolving, so there are plenty of opportunities to innovate. I'm already thinking about other projects ๐ค (audio over fiber, anyone?).
If you read this out to the end, first congrats ๐, second, don't hesitate to reach out. I'm always down for a chat. Happy hacking! ๐งโจ
Thanks to: Yuki, Romain, Quentin, and Geoffrey for the help proofreading this massive article.
